Industrial Flexible Trapezoidal V String Belt Brush

Industrial Flexible trapezoidal V string belt brush has multiple applications, especially for cleaning in narrow places. Open end and closed are available.

مادة الشعيرات :
Nylon/Polypropylene/Horsehair/Tampico
المواد الأساسية :
V Shape Belt
لون الشعيرات :
White/Black/Red/Blue/Green
وظيفة :
Cleaning/Conveying/Supporting
ميزة :
V String Belt Brush

استفسر الآن

تفاصيل المنتج

China Industrial Flexible Trapezoidal V String Belt Brush Manufacturer

Introduction

A V Belt Brush is a small but powerful industrial brush for machines that have very limited space. It is made by tufting several rows of bristles onto a trapezoidal belt, creating a slim, flexible brush that can easily run on pulleys and reach tight areas that traditional brushes cannot. The belts are normally made from PU or rubber, giving them great flexibility and durability for continuous industrial use.

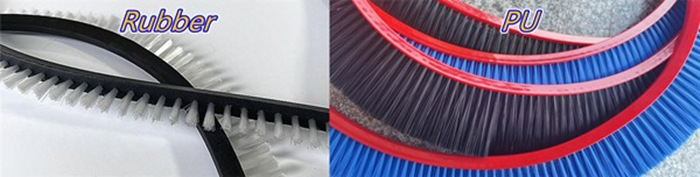

Vee Belt Brushes

The working width of this trapezoidal belt brush ranges from 8mm to 25mm, and you can choose from the most common belt sizes:

A (13×8mm)
B (17×11mm)
C (22×14mm)

These belts can be produced with one, two, or three rows of bristles depending on your cleaning needs. Bristle materials are fully customizable, making this V String Belt Brush suitable for a wide range of applications.

Belt Model	Width	Height	Rows
A	13mm	8mm	1 or 2
B	17mm	11mm	1 or 2
C	22mm	14mm	1,2 or 3

Advantages

Available in open-loop or continuous belt designs.
Food-grade options for industries requiring hygiene-safe components.
Supports high working speeds—up to 20 meters per second.
Performs well in a wide temperature range: –15°C to +80°C.
Multiple bristle color options: Blue, Green, Red, Black, White.
Perfect for cleaning narrow spaces where regular brushes cannot fit.

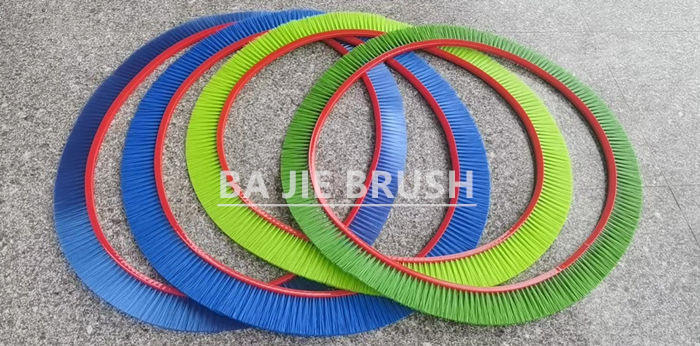

Tray Cleaning Belt Brush

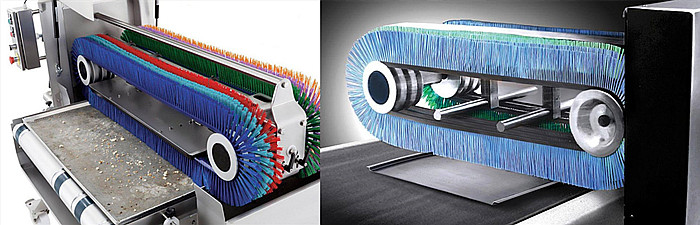

Application

The Flexible Trapezoidal V String Belt Brush is especially useful in environments where installation space is limited. It is commonly used for transversal cleaning, such as in tray cleaning machines, laundry folding equipment, and various production line cleaning systems. Because it can run smoothly on pulleys, it provides steady and efficient cleaning even in compact or complex machine layouts.

This brush is also a popular choice for tray cleaning V belt brush systems, where consistent and gentle cleaning is needed without scratching or damaging the surface.
